METROLOGY-GRADE DELIVERABLES • DECISION-READY OUTPUTS
Capture Reality.
Remove Assumptions.
3D scanning and reverse engineering for engineers who can’t afford rework,
downtime, or awkward sign-off meetings.
We don’t just deliver geometry — we deliver defensible decisions.
Most scanning vendors optimise for capture. We optimise for what happens next: fit-up, fabrication, shutdown windows, and sign-off. That difference only becomes obvious after something goes wrong — unless you plan for it.
Engineering Capabilities
The deliverable isn’t a point cloud. It’s a model you can trust — with constraints, intent, and validation built in.
Reverse Engineering :
Native parametric CAD built around design intent — not auto-surfaces. Editable, constrained, and manufacturable.
Parametric feature tree
Legacy part recreation
Fit-critical assemblies
Dimensional Verification:
Deviation analysis that supports acceptance criteria and sign-off. Clear, traceable, and defensible.
Deviation maps & sections
Datum strategy support
Clear pass/fail boundaries

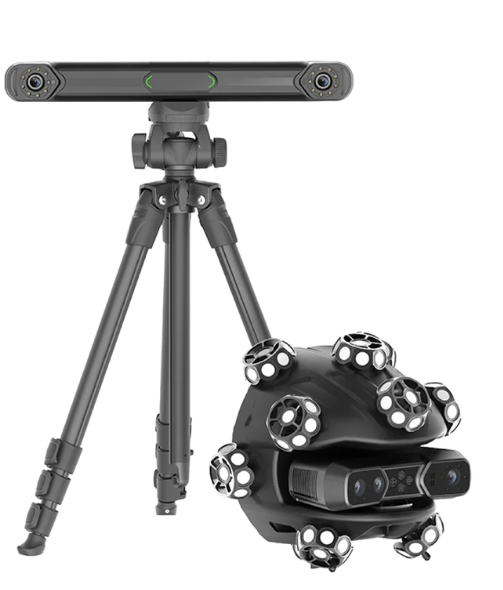

Onsite Reality Capture
On Site scanning for immovable assets and constrained shutdown windows. Fast, methodical, minimal disruption.
Large assemblies & Plant
Planned capture times
Downstream-ready data
Work Flow
A straightforward process, engineered to prevent expensive surprises later.
1. Scope workfow
Define decision needs, interfaces, datums,
and acceptance boundaries.
2. Capture Reality
Site or lab scanning, planned to minimise disruption and maximise fidelity.
3. Model Intent
Parametric CAD with constraints and feature logic — editable and useful.
4. Validate and deliver
CAD↔scan checks, deviation reporting, and decision-ready delivery pack.
Client Reviews
Quiet outcomes, Clear deliverables, Fewer follow up questions.
“ The 5DEng team is absolutely fantastic to work with and would recommend to anyone who is looking for a quality 3D scanning work. They accurately scanned and reverse engineered all our parts for the mining industry first time around plus their 3D printing service was brilliant! “ Petra Rees - CEO, The Why CorpPetra Rees - CEO, The Why Corp
“5DEng has become an integral part of our engineering processes for reverse engineering of tools that are either broken, worn, and/or have no CAD data. Because of the accuracy of the scanner, we are able to mill directly from the
scan data eliminating the need to create a CAD model. “ Mike Marcot, MJK Engineering
“What we valued most wasn’t the scan and 3D model produced itself, but the confidence to proceed. The model stood up when it mattered.”— JD Smythe
